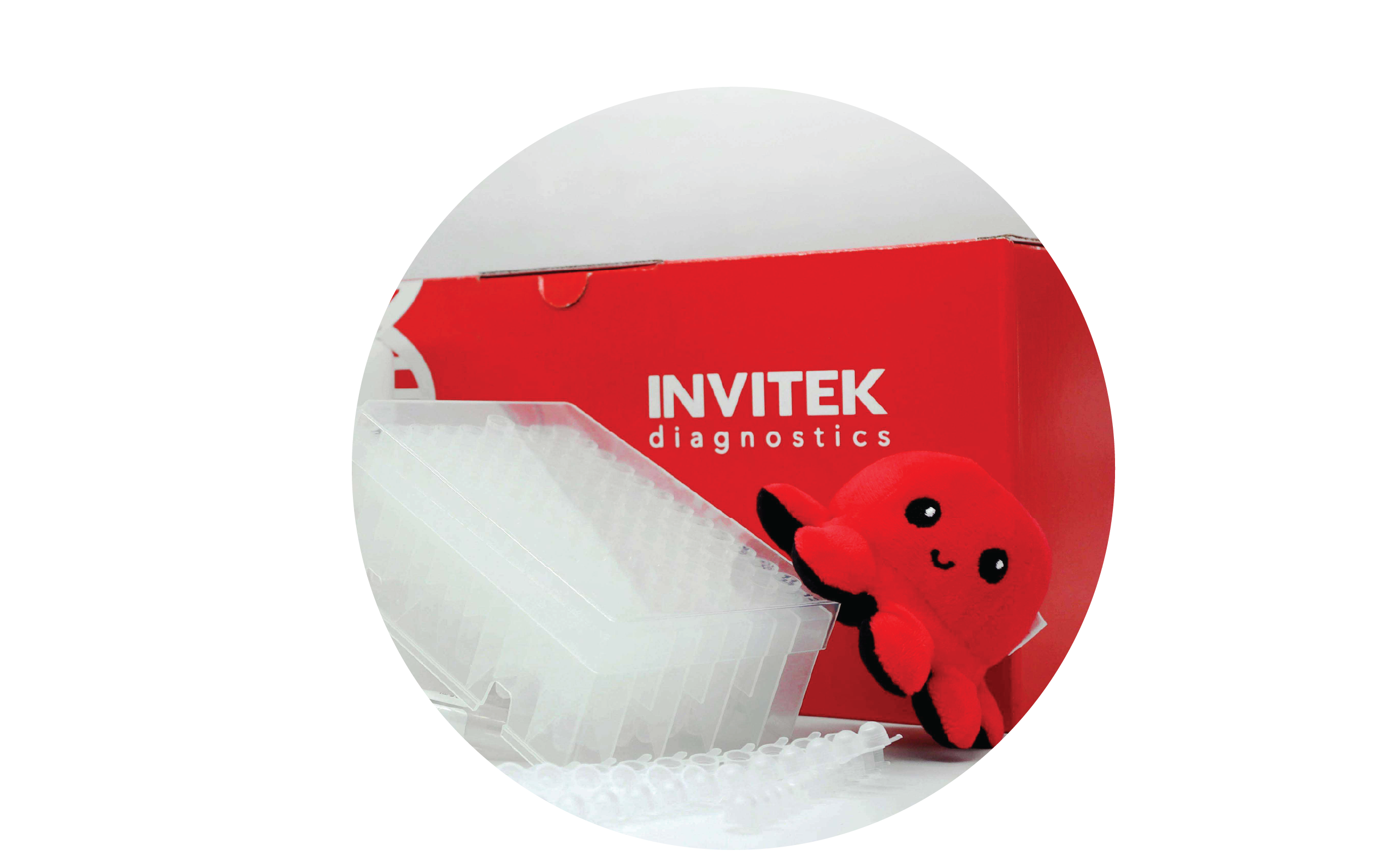

InviMag® Blood DNA Mini Kit/ IG
Item No.: 2431120100
Highlights:
- Fast & safe handling: no additional erythrocyte lysis
- Compatible with different of anticoagulants (EDTA, citrate) and primary tubes
- High reliability: fully automated and standardized sample processing
- CE-IVD certified, recommended for in vitro diagnostic use
Product Details
The InviMag® Blood DNA Mini Kit/IG enables fully automated purification of genomic DNA from human blood samples on the InviGenius® PLUS with sample volumes of up to 200 µl. Fresh or frozen whole blood treated with EDTA or citrate, but not with heparin, from common blood collection systems can be used. Different primary tubes can be placed directly into the sample loading rack. A defined and optimized protocol provides high yields of pure DNA. Automatic barcode reading enables full tracking of samples and reagents.
| Specifications | |
|---|---|
| Downstream application | Molecular biology techniques like qPCR, NGS, hybridization methods and HLA typing |
| Target nucleic acid | Genomic DNA |
| Starting material | 200 µl fresh or frozen human whole blood (EDTA / citrate stabilized, but not heparinized) |
| Yield | 2-10 µg, depending on number of leukocytes, sample source, sample transport, sample storage, and age of the sample |
| Quality | A260:A280 1.6 – 2.0 |
| Preparation time | approx. 90 min per run (12 samples) |
| Elution Volume | 100 – 200 µl |
| Technology | Magnetic beads |
| Certification | CE-IVD (in compliance with REGULATION (EU) 2017/746 on in vitro diagnostic medical devices) |
Downloads
Instructions for use - InviMag Blood DNA Mini Kit_IG_EN
22 SEP 2025
- Instructions for use, IFU
Instructions for use - InviMag Blood DNA Mini Kit_IG_DE
30 JUL 2025
- Instructions for use, IFU
Instructions for use - InviMag Blood DNA Mini Kit_IG_ES
31 JUL 2025
- Instructions for use, IFU
Instructions for use - InviMag Blood DNA Mini Kit_IG_FR
30 JUL 2025
- Instructions for use, IFU
Instructions for use - InviMag Blood DNA Mini Kit_IG_IT
30 JUL 2025
- Instructions for use, IFU
Instructions for use - InviMag Blood DNA Mini Kit_IG_PT
26 AUG 2025
- Instructions for use, IFU
Ordering Details
| Product Name | Package Size | Catalogue No. |
|---|---|---|
| InviMag® Blood DNA Mini Kit/ IG | 8 x 12 purifications | 2431120100 |
FAQs
-
How should I thaw frozen blood sample tubes?
Frozen blood should be thawed in a 37°C water bath for 10–15 min, inverted carefully for several times and stored on ice until processing.
-
What is the DNA fragment size that can be obtained using InviMag® kits for extraction with magnetic beads?
The average size of DNA fragments is 100-300 kb. The large fragments obtained are in general suitable for all common analytic applications like PCR techniques, hybridisation and NGS.
-
What is the composition of Elution Buffer?
Elution Buffer: 10 mM Tris pH 8.5 – 9
